Okeanos Pro

Okeanos Pro marks the debut of Brandenburg Labs’ state-of-the-art headphone-based Okeanos Systems, powered by the groundbreaking Deep Dive Audio (DDA) technology. Okeanos Pro is a system designed to simulate virtual multi-channel loudspeaker systems via headphones. Designed for audio professionals and institutions that demand precision and flexibility, it’s the ideal solution for research and innovation labs, audio engineers and producers, as well as universities and training programs focused on spatial audio.

Product Overview

The system accurately simulates virtual sound in a clearly localized and precise manner in the room and gives the plausible impression of hearing a real loudspeaker system. Create powerful spatial compositions, precisely place sounds in the sound field and listen to it on different speaker configurations without ever putting down your headphones.

This astounding illusion is achieved by a novel combination of acoustic calibration and interactive, real time auralization. On first use, the product is calibrated to the acoustics of the listening space and reacts dynamically to the exact position and rotation of the user’s head Six Degrees of Freedom (6DoF). This allows important characteristics of real loudspeakers (such as their directivity) to be simulated and critical decisions to be made for the mix.

Representation of the listening room and virtual multichannel speaker system to demonstrate the propagation of sound waves inside a room as well as the movement in 6DoF of the listener

Compatible system Easy to Set Up

Use Okeanos Pro just like you would use a set of studio monitors and forget that you are wearing headphones! Thanks to ultra low latency Dante, Ravenna or AES67 connectivity, the system is ready to be integrated into your studio today. The reliable tracking system by HTC Vive fits easily to your favorite headphones, adding an entirely new dimension to them.

Route up to 16 channels of audio to Okeanos Pro and receive two channels of highly immersive binaural audio back in as little as 10ms. All processing happens on the machine, saving precious processing power on your workstation.

An easy-to-use Web User Interface (WebUI) allows you to control your system comfortably from your web browser. Create and switch between your custom configurations at the ease of a click, whether stereo, quadrophonic, 9.1.6 or your very personal custom setup. The intuitive 3D UI will help you to replicate your speaker setup or come up with something entirely new.

Ready for orders, Okeanos Pro enables quick and easy mixing of multichannel content, without the need for costly and complex speaker installations.

Key Technical Aspects

  • Up to 16 freely placeable virtual sound sources
  • Seamless integration into your studio via Dante, Ravenna or AES67
  • 48kHz sampling rate, bitrates of 16, 24 and 32bit at as little as 10ms latency
  • Realistic virtual speaker environments with highly plausible audio reproduction
  • Accurate 6DoF Tracking using a sensor that mounts onto your favorite headphones
  • WebUI control - a user-friendly web interface for comprehensive control and setup, including channel control, 3D monitoring, and speaker configuration

The Directivity Transfer Function (DTF) Editor

New Feature

Available as a free upgrade starting August 2025.

For Okeanos Pro users

With the new DTF feature, Okeanos Pro can more accurately represent the unique studio design of audio professionals, providing a more accurate simulation and enhanced immersion. Moreover, users benefit from the possibility to evaluate different loudspeakers virtually and simulate unique directivity patterns.

Brandenburg Labs’ new directivity transfer function offers a library of pre-made DTFs. Additionally, users are able to record and edit the DTF of a loudspeaker at six cardinal positions, i.e. front, back, left, right, top, and bottom. Points between the cardinal positions are interpolated at 10 degrees intervals, providing 360 degrees of coverage.

Renderer Photo V4_300 DPI
Renderer
interpolation_sphere
Interpolation Sphere
scene_editor
Scene Editor
horizontal_plane

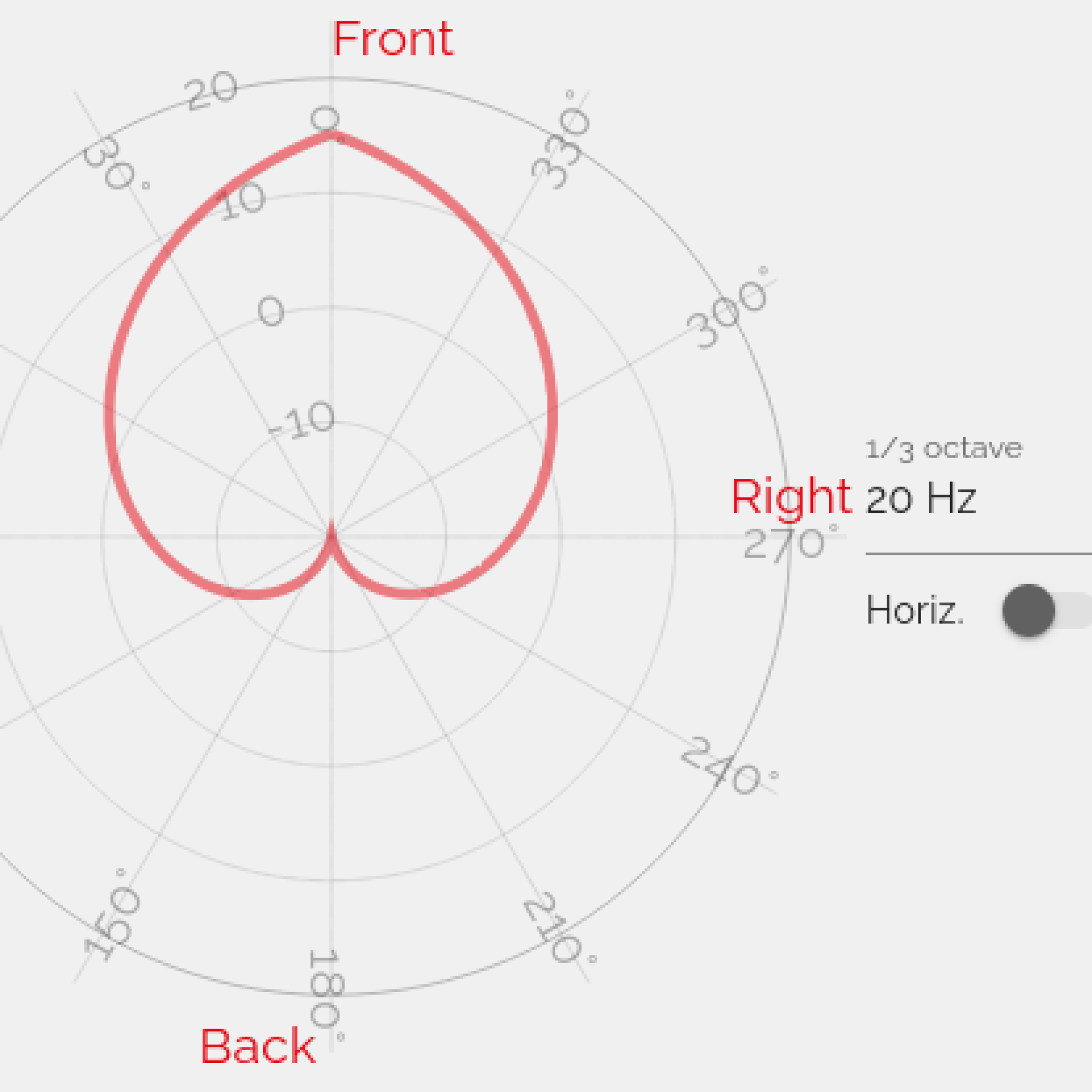

Horizontal Plane
vertical_plane

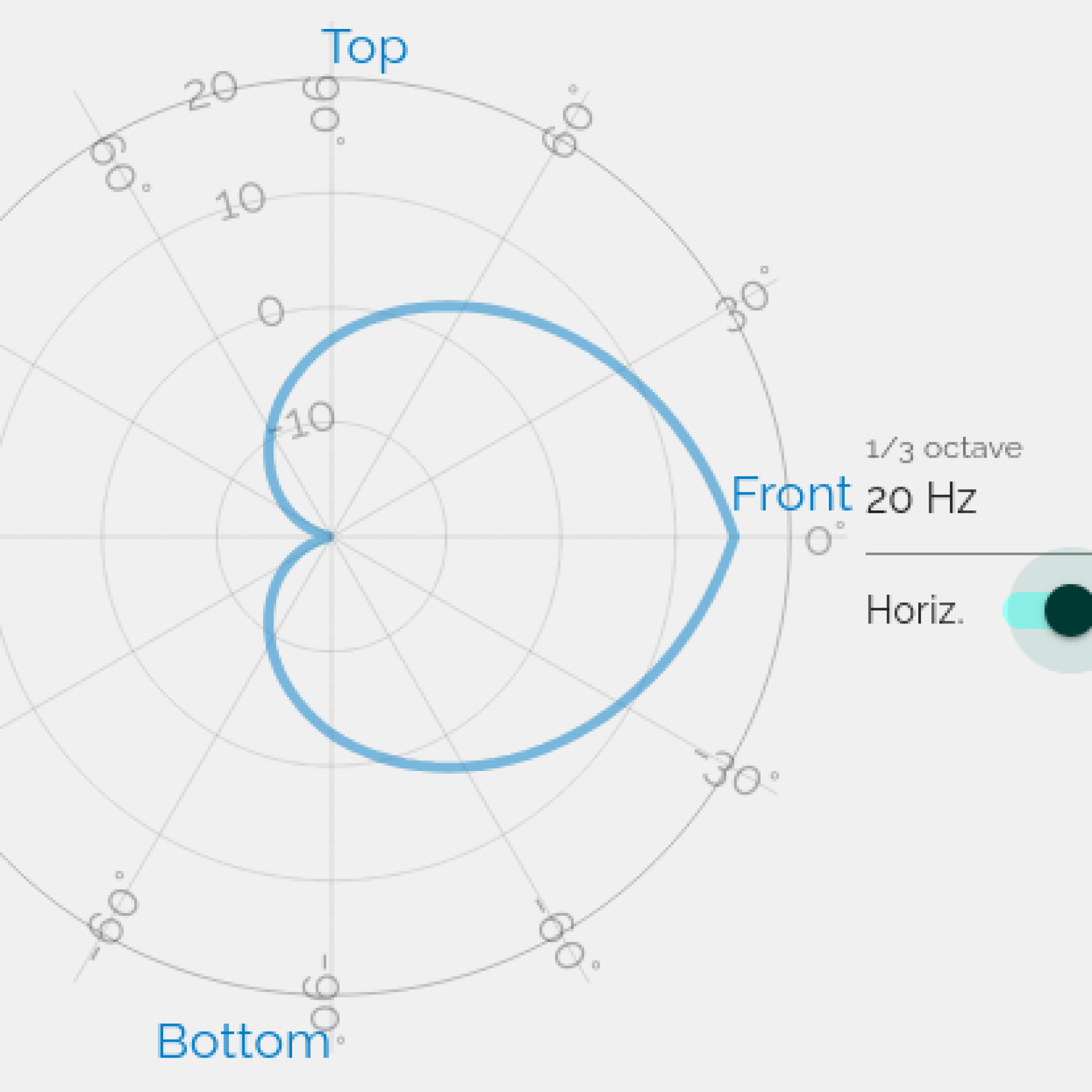

Vertical Plane
dtf_editor

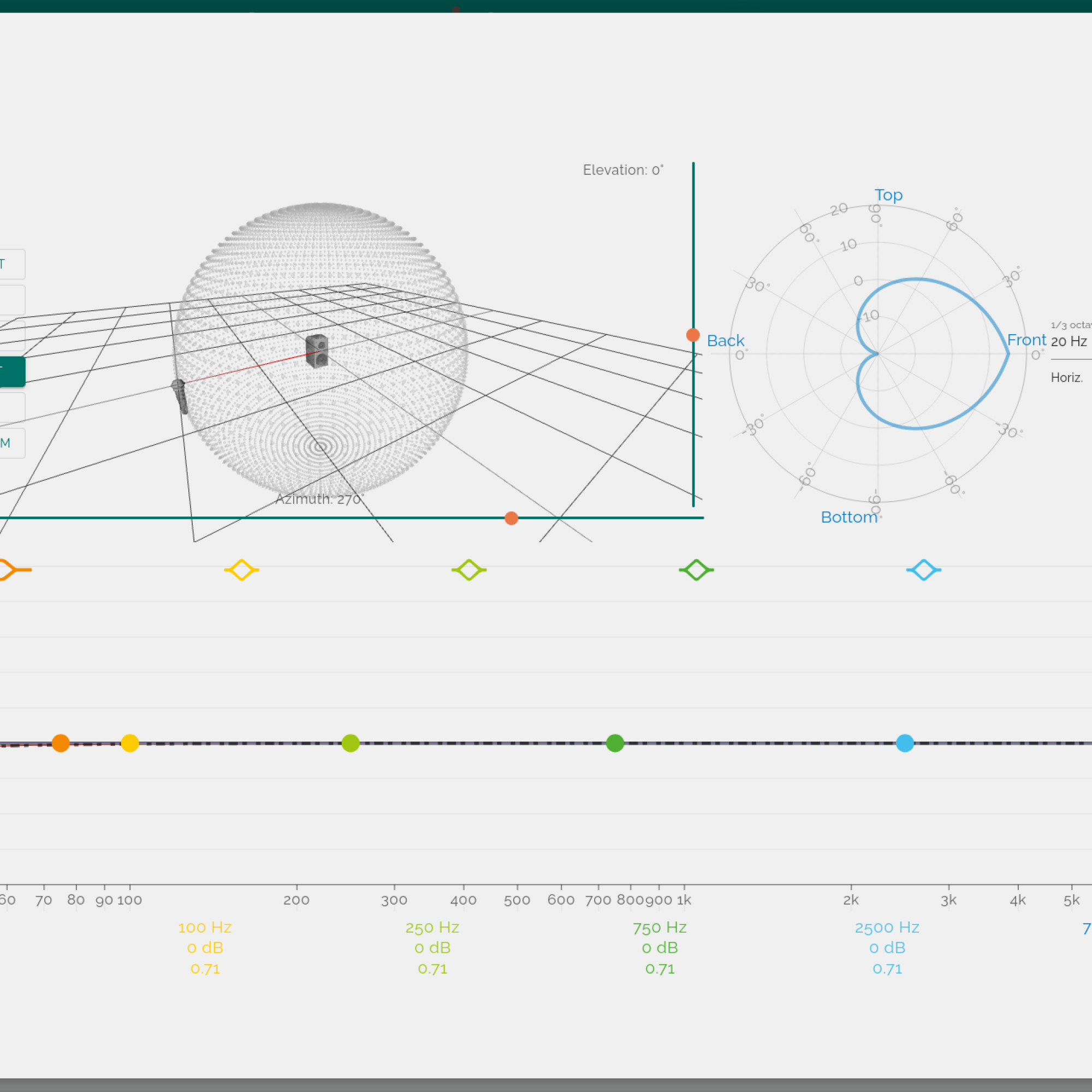

DTF Editor view
dtf_selector
DTF Selector

Upcoming Features

  • 96kHz sampling rate
  • Increased channel count
  • Support for multiple simultaneous users
  • Adjustable head-related transfer functions (HRTFs) and speaker directivities, with an editor for creating custom configurations
Measuring the room with an omnidirectional microphone as the first step of installing Okeanos Pro

Why Okeanos Pro is superior

  • Priced at 5,000 € (shipping and taxes not included), the Okeanos Pro system is considerably more affordable than a full 16 channel studio speaker setup, while offering comparable performance.
  • Okeanos Pro allows you to mix multichannel audio in any studio with unparalleled flexibility, thanks to the independence from physical speakers and room configurations.
  • Over-the-air updates, with convenient and timely updates to the system's software, ensuring the system stays up-to-date with the latest features and improvements.
  • Okeanos Pro comes with comprehensive documentation that provides detailed guidance and support for users.
  • The Brandenburg Labs team assists with initial consulting and professional support.

Included in Delivery

  • 1x HTC Vive Tracker 3.0 + accessories
  • 2x HTC Vive base station 2.0 + accessories
  • 1x Brandenburg Labs mounting clip to hold the tracker
  • 1x pre-configured rendering machine with AoIP connectivity (Dante or Ravenna/AES67, depending on specification)

Pilot Customer Testimonials

“The Okeanos Pro is a valuable tool for adequately assessing and improving 3D audio mixes. Due to its realistic playback capability, it increases students’ awareness of how our ears perceive sound and what effect the direction of the individual tracks in the mix has on the consumer.”
Lasse Nipkow
Lasse Nipkow3D audio lecturer at SAE Zurich
“PXL-Music is pleased to have the first research lab equipped with the Okeanos Pro, now serving as a reference for convincing binaural audio in six degrees of freedom. Beyond the high-quality, neutral, and versatile engine, we especially like the unique feature of sampling and integrating the actual room’s acoustics.”
Dr. Brecht De Man
Dr. Brecht De ManHead of Research at PXL University

Get started with Okeanos pro!

For more information, please contact us at . If you'd like to meet us at upcoming international events and experience our demo, please visit our website for details on where to meet us next.
Click Here
